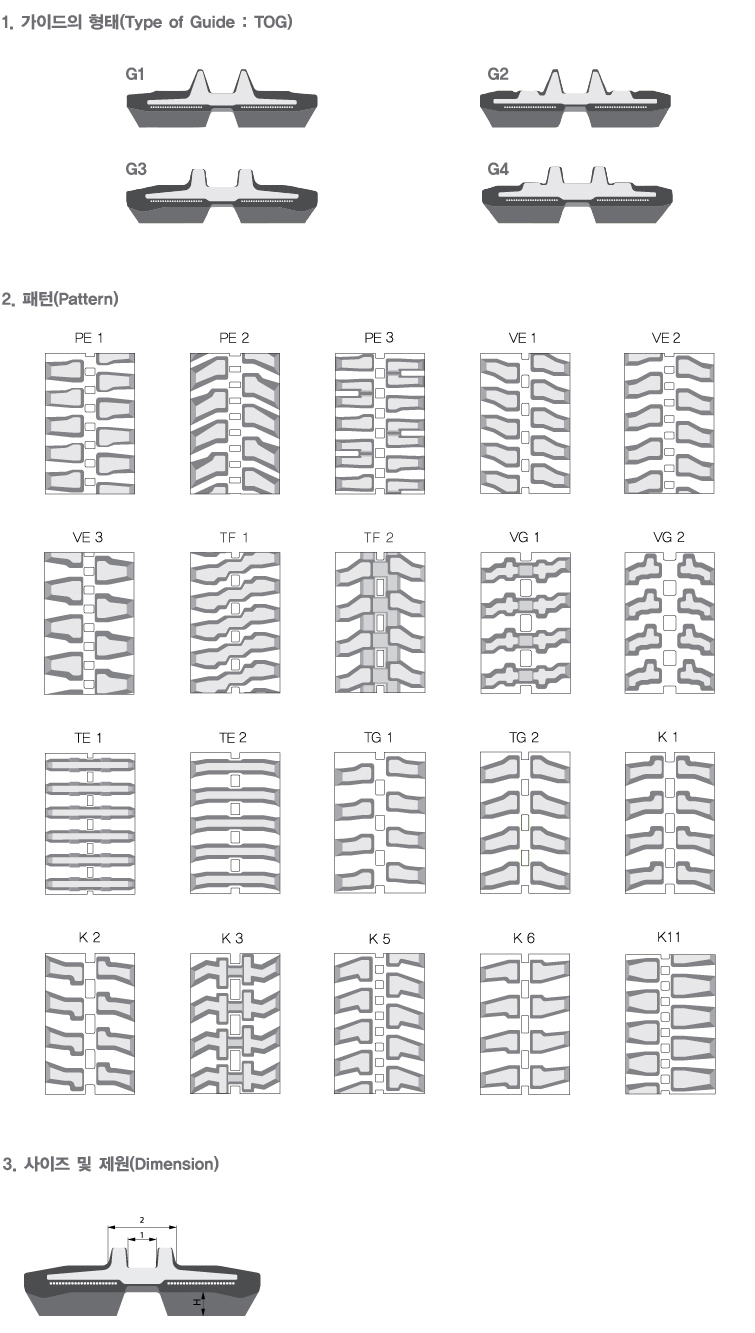

No. Size

Width
(mm)

Pitch
(mm)		 Dimension TOG Pattern
1 2 H
1 150 × 60p 150 60 20~24 62±2 15 G1 VG1
2 150 × 72p 150 72 20~23 63±2 16 G1 VG2
3 180 × 60P 180 60 20~24 62±2 14 G1 VG2
4 180 × 72p 180 72 20~23 62±2 18 G1 TG1
5 R180 × 72p 180 72 19~23 60±2 18 G2 VE5
6 200 × 72p 200 72 19~23 64±2 18 G1 K1
7 230 × 72p 230 72 19~23 76±2 14 G1 K1
8 YM230 × 72p 230 72 19~23 64±2 19 G2 TF1
9 YS230 × 72p 230 72 19~23 64±2 19 G2 VE1
10 230 × 48p 230 48 26~30 64±2 25 G2 PE1
11 CA230 × 48p 230 48 26~30 66±2 20 G4 PE2
12 230 × 96p 230 96 26~30 76±2 20 G3 K3
13 TK250 × 47p 250 47 26~30 75±2 20 G4 PE2
14 YF250 × 48.5P 250 48.5 21~24 68±2 20 G4 K11
15 250 × 52.5p 250 52.5 28~32 76±2 25 G3 K5
16 AK250 × 52.5p 250 52.5 28~32 76±2 20 G4 VE3
17 250 × 72p 250 72 21~25 78±2 18 G1 K2
18 KN300 × 52.5p 300 52.5 28~32 84±2 25 G3 PE1
19 KW300 × 52.5p 300 52.5 38~42 94±2 25 G3 PE1
20 MA300 × 52.5p 300 52.5 28~32 84±2 25 G3 PE2
21 MB300 × 52.5p 300 52.5 38~42 94±2 25 G3 PE2
22 K300 × 52.5p 300 52.5 28~32 86±2 20 G4 K5
23

BK300 × 52.5p

 300 52.5 38~42 92±2 25 G4 PE1
24 YF300 × 55.5p 300 55.5 28~32 82±2 24 G4 K11
25 JG300 × 72p 300 72 23~25 76±2 20 G1 TG2
26 MH300 × 72p 300 72 23~25 76±2 20 G1 TG2
27 RG320 × 90p 320 90 34~38 86±2 30 G1 TE2
28 320 × 100p 320 100 34~38 80±2 24 G1 K6
29 OF350 × 75.5p 350 75.5 34~38 100±2 22 G4 K11
30 PN400 × 72.5p 400 72.5 34~38 96±2 25 G3 PE1
31 PW400 × 72.5p 400 72.5 47~51 108±2 25 G3 PE1
32 WR400 × 72.5p 400 72.5 47~51 120±2 24 G4 VE2
33 OF400 × 75.5p 400 75.5 34~38 100±2 24 G4 K11
34 URI450 × 81p 450 81 54~58 134±2 30 G3 PE1
35 URV450 × 81p 450 81 40~45 110±2 30 G3 PE1
36 PK450 × 81p 450 81 40~45 115±2 30 G3 PE1
37 EB450 × 71p 450 71 47~51 118±2 30 G3 PE1
38 KX450 × 83.5p 450 83.5 40~45 115±2 30 G3 PE2
39 Y450 × 83.5p 450 83.5 42~47 115±2 30 G4 K11
40 CD600 × 100p 600 100 40~45 114±2 40 G1 TE1
41 MT600 × 100p 600 100 40~45 114±2 40 G1 TE1
42 MT700 × 100p 700 100 47~51 110±2 40 G1 TE1
43 MT750 × 150p 750 150 61~65 168±2 45 G1 TE1
44 MT800 × 150p 800 150 61~65 141±2 40 G1 TE1
45 SL450 × 100p 450 100 61~65 100±2 28 G2 PE3
46 CR500 × 90p 500 90 43~46 93±2 30 G1 TE2


PE1

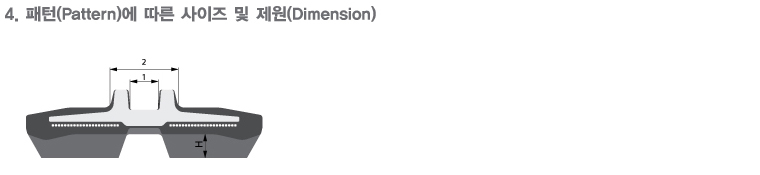

No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 230 × 48P 230 48 26~30 64±2 25 G2 PE1
2 KN300 × 52.5P 300 52.5 28~32 84±2 25 G3 PE1
3 KW300 × 52.5P 300 52.5 38~42 94±2 25 G3 PE1
4 BK300 × 52.5P 300 52.5 38~42 92±2 25 G4 PE1
5 PN400 × 72.5P 400 72.5 34~38 96±2 25 G3 PE1
6 PW400 × 72.5 400 72.5 47~51 108±2 25 G3 PE1
7 URI450 × 81P 450 71 54~58 134±2 30 G3 PE1
8 URV450 × 81P 450 81 40~45 110±2 30 G3 PE1
9 PK450 × 81P 450 81 40~45 115±2 30 G3 PE1
10 EB450 × 71P 450 71 47~51 118±2 30 G3 PE1
PE2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 CA230 × 48P 230 48 26~30 66±2 20 G4 PE2
2 TK250 × 47P 250 47 26~30 75±2 20 G4 PE2
3 MA300 × 52.5P 300 52.5 28~32 84±2 25 G3 PE2
4 MB300 × 52.5P 300 52.5 38~42 94±2 25 G3 PE2
5 KX450 × 83.5P 450 83.5 40~45 115±2 30 G3 PE2
PE3
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 SL450 × 100P 450 100 61~65 100±2 28 G2 PE3
VE1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 YS230 × 72P 230 72 19~23 64±2 19 G2 VE1
VE2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 WR400 × 72.5P 400 72.5 47~51 120±2 24 G4 VE2
VE3
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 AK250 × 52.5P 250 52.5 28~32 76±2 20 G4 VE3
TF1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 YM230 × 72P 230 72 19~23 64±2 19 G2 TF1
VG1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 150 × 60P 150 60 20~24 621±2 15 G1 VG1
VG2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 150 × 72P 150 72 20~23 63±2 16 G1 VG2
1 180 × 60P 180 60 20~24 62±2 14 G1 VG2
TE1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 CD600 × 100P 600 100 40~45 114±2 40 G1 TE1
2 MT600 × 100P 600 100 40~45 114±2 40 G1 TE1
3 MT700 × 100P 700 100 47~51 110±2 40 G1 TE1
4 MT750 × 150P 750 150 61~65 168±2 45 G1 TE1
5 MT800 × 150P 800 150 61~65 141±2 40 G1 TE1
TE2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 RG320 × 90P 320 90 34~38 86±2 30 G1 TE2
2 CR500 × 90P 500 90 43~46 93±2 30 G1 TE2
TG1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 180 × 72P 180 72 20~23 62±2 18 G1 TG1
TG2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 JG300 × 72P 300 72 23~25 76±2 20 G1 TG2
2 MH300 × 72P 300 72 23~25 76±2 20 G1 TG2
K1
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 200 × 72P 200 72 19~23 64±2 18 G1 K1
2 230 × 72P 230 72 19~23 76±2 14 G1 K1
K2
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 250 × 72P 250 72 21~25 78±2 18 G1 K2
K3
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 230 × 96P 230 96 26~30 76±2 20 G3 K3
K5
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 250 × 52.5P 250 52.5 28~32 76±2 25 G3 K5
2 K300 × 52.5P 300 52.5 28~32 86±2 20 G4 K5
K6
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 250 × 52.5P 250 52.5 28~32 76±2 25 G3 K5
1 320 × 100P 320 100 34~38 80±2 24 G1 K6
K11
No. Size Width Pitch Dimention TOG Pattern
1 2 H
1 YF250 × 48.5P 250 48.5 21~24 68±2 20 G4 K11
2 YF300 × 55.5P 300 55.5 28~32 82±2 24 G4 K11
3 OF350 × 75.5P 350 75.5 34~38 100±2 22 G4 K11
4 OF400 × 75.5P 400 75.5 34~38 100±2 24 G4 K11
5 Y450 × 83.5P 450 83.5 42~47 115±2 30 G4 K11
BRAND MODEL REPLACEMENT TRACK
Code Size Wide Pitch Links
YANMAR
[얀마]		 SV008 R 180 × 72p × 37L 180 72 37
SV010 R 180 × 72p × 43 180 72 43
VIO015 YS 230 × 72p × 47 230 72 47
VIO017 YS 230 × 72p × 46 230 72 46
VIO020 YF 250 × 48.5p × 84 250 48.5 84
VIO027 YF 300 × 55.5p × 78 300 55.5 78
VIO030,035 YF 300 × 55.5p × 82 300 55.5 82
VIO055 OF 400 × 75.5p × 74 400 75.5 74
KUBOTA
[구보다]		 U-008 R 180 × 72p × 37 180 72 37
U-010 R 180 × 72p × 40 180 72 40
KH012   200 × 72p × 42 200 72 42
U-017 CA 230 × 48p × 70 230 48 70
U-020 TK 250 × 47p × 84 250 47 84
U-030,035 K 300 × 52.5p × 84 300 52.5 84
U-56 PW 400 × 72.5p × 74 400 72.5 74
IHI 9NX   180 × 72p × 37 180 72 37
15NX   230 × 96p × 35 230 96 35
15NX-2   230 × 48p × 70 230 48 70
20NX-2   230 × 48p × 80 230 48 80
35NX-2 MB 300 × 52.5p × 90 300 52.5 90
VOLVO
[볼보]		 EC15B   230 × 96p × 33 230 96 33
EC15B   230 × 48p × 66 230 48 66
ECR25,28 MB 300 × 52.5p × 78 300 52.5 78
ECR35,38 MB 300 × 52.5p × 84 300 52.5 84
EC55B,C PW 400 × 72.5p × 74 400 72.5 74
HITACHI
[히타치]		 EX008   180 × 72p × 37 180 72 37
EX010   180 × 72p × 41 180 72 41
AX015   230 × 96p × 33 230 96 33
AX015   230 × 48p × 66 230 48 66
ZX017   230 × 96p × 35 230 96 35
ZX017   230 × 48p × 70 230 48 70
EX020,ZX022 AK 250 × 52.5p × 77 250 52.5 77
EX-20UR MA 300 × 52.5p × 78 300 52.5 78
EX-26 MA 300 × 52.5p × 76 300 52.5 76
ZX027 MA 300 × 52.5p × 80 300 52.5 80
EX030 MA 300 × 52.5p × 82 300 52.5 82
ZX030,035 MA 300 × 52.5p × 86 300 52.5 86
ZX055 PW 400 × 72.5p × 72 400 72.5 72
ZX50U-2 PN 400 × 72.5p × 74 400 72.5 74
KOMATSU
[코마츠]		 SK09SR R 180 × 72p × 40 180 72 40
SK013,015,017SR   230 × 96p × 35 230 96 35
SK013,015,017SR   230 × 48p × 70 230 48 70
SK020SR-3 AK 250 × 52.5p × 76 250 52.5 76
SK027SR-3 MA 300 × 52.5p × 80 300 52.5 80
SK030SR-3 MA 300 × 52.5p × 82 300 52.5 82
SK030SR-5,035-5 MA 300 × 52.5p × 88 300 52.5 88
SK024 MA 300 × 52.5p × 78 300 52.5 78
SK055SR-5 PN 400 × 72.5p × 74 400 72.5 74
KOBELCO
[코벨코]		 PC009-1   180 × 72p × 37 180 72 37
PC018MR-2   230 × 96p × 35 230 96 35
PC018MR-2   230 × 48p × 70 230 48 70
PC020MR-1 AK 250 × 52.5p × 76 250 52.5 76
PC020MR-2
PC020MR-3		 AK 250 × 52.5p × 78 250 52.5 78
PC030MR-1 MA 300 × 52.5p × 84 300 52.5 84
PC030MR-2 MA 300 × 52.5p × 86 300 52.5 86
PC050MR-2 PN 400 × 72.5p × 74 400 72.5 74
DOOSAN
[두산]		 S-010   180 × 72p × 37 180 72 37
S-015   230 × 96p × 35 230 96 35
S-015   230 × 48p × 70 230 48 70
DX-027 AK 250 × 52.5p × 80 250 52.5 80
S-030 MA 300 × 52.5p × 76 300 52.5 76
S-035 MA 300 × 52.5p × 84 300 52.5 84
DX-035 MA 300 × 52.5p × 86 300 52.5 86
DX055 PW 400 × 72.5p × 76 400 72.5 76
생산공정도
